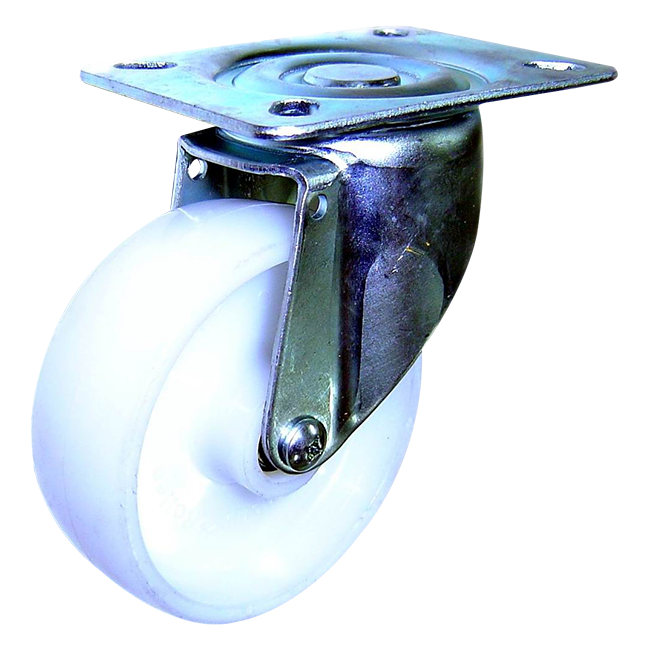

RB-421a00RnZPH

RB-421a00RnZPH

Model No	Size	Material	Function
421a00R100nZPH	4″	PP	SWIVEL

Wheels size (mm)	Width (mm)	Capacity (kg)	Height (mm)	Size of plate (mm)	Hole centre (mm)
100	35	125	128	104 X 80	72 X 52 / 80 X 60

USES
Polypropylene white made it for Medium-Heavy capacities. Recommended application (Magazine carts) (Tool Trolleys) (Waste Containers) and etc…

FLOORS
Suitable for smooth and compact floors. Easy running and good manoeuvrability.

ORIGIN
Rhombus – Germany

Description

Size	Model No	Material	Function	Wheels size (mm)	Width (mm)	Capacity (kg)	Height (mm)	Size of plate (mm)	Hole centre (mm)
3”	421a00R080nZPH	PP	SWIVEL	80	33	100	107	104 X 80	72 X 52 / 80 X 60
3″	419a00R080nZPG	PP	RIGID	80	33	100	107	104 X 80	72 X 52 / 80 X 60
3”	421h00R080nZPH	PP	BRAKE	80	33	100	107	104 X 80	72 X 52 / 80 X 60
3”	H00R080nZ	PP	WHEEL	80	33	100	36mm	12mm	Roller Bearing

4”	421a00R100nZPH	PP	SWIVEL	100	35	125	128	104 X 80	72 X 52 / 80 X 60
4″	419a00R100nZPG	PP	RIGID	100	35	125	128	104 X 80	72 X 52 / 80 X 60
4”	421h00R100ZPH	PP	BRAKE	100	35	125	128	104 X 80	72 X 52 / 80 X 60
4”	H00R100nZ	PP	WHEEL	100	35	125	36mm	12mm	Roller Bearing

5”	421a00R125nZPH	PP	SWIVEL	125	32	125	152	104 X 80	72 X 52 / 80 X 60
5″	419a00R125nZPG	PP	RIGID	125	32	125	152	104 X 80	72 X 52 / 80 X 60
5”	421h00R125nZPH	PP	BRAKE	125	32	125	152	104 X 80	72 X 52 / 80 X 60
5”	H00R125nZ STD	PP	WHEEL	125	32	125	35mm	12mm	Roller Bearing

5”	441a00R125nZPI	PP / TEBAL	SWIVEL	125	40	150	156	115 X 85	80 X 55 / 80 X 60
5″	439a00R125nZPI	PP	RIGID	125	40	150	156	115 X 85	80 X 55 / 80 X 60
5”	H00R125nZ	PP	WHEEL	125	40	150	48mm	15mm	Roller Bearing

6”	441a00R160nZPK	PP	SWIVEL	160	42	225	197	138 X 109	105 X 75 / 105 X 80
6″	439a00R160nZPK	PP	RIGID	160	42	225	197	138 X 109	105 X 75 / 105 X 80
6”	441i00R160nZPK	PP	BRAKE	160	42	225	197	138 X 109	105 X 75 / 105 X 80
6”	H00R160nZ	PP	WHEEL	160	42	225	58mm	20mm	Roller Bearing

8”	441a00R200nZPK	PP	SWIVEL	200	50	300	237	138 X 109	105 X 75 / 105 X 80
8″	439a00R200nZPK	PP	RIGID	200	50	300	237	138 X 109	105 X 75 / 105 X 80
8”	441i00R200nZPK	PP	BRAKE	200	50	300	237	138 X 109	105 X 75 / 105 X 80
8”	H00R200nZ	PP	WHEEL	200	50	300	58mm	20mm	Roller Bearing
