Products

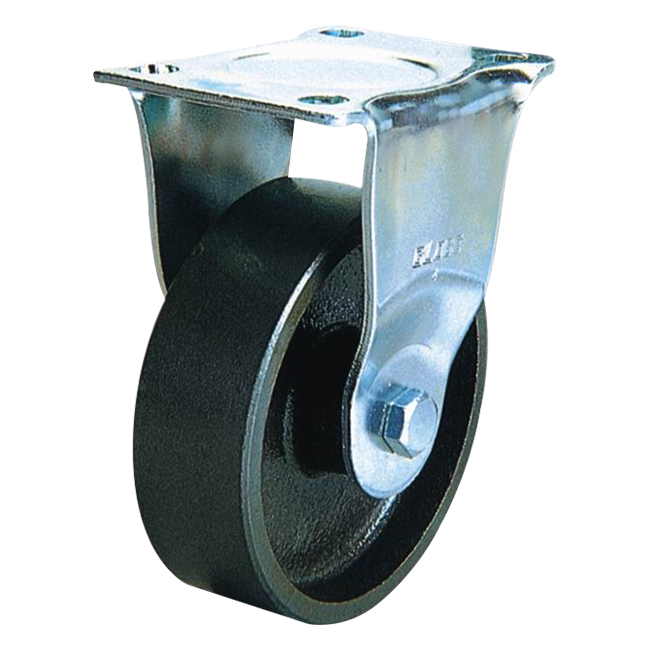

GB-3303461

GB-3303461

Model No Size Material Function
GB-3303461 4″ CAST IRON RIGID
Wheels size (mm) Width (mm) Capacity (kg) Height (mm) Size of plate (mm) Hole centre (mm)
100 32 130 130 94 X 67 73 X 45

USES
Suitable for low rolling resistance with high abrasion resistance, also suitable for use in the high temperature environments.

FLOORS
Suitable on resin-cement. Not suitable on fragile floor or with obctacles along the path.

ORIGIN
Globe – Made by China

Categories: ,

Description

Size Model No Material Function Wheels size (mm) Width (mm) Capacity (kg) Height (mm) Size of plate (mm) Hole centre (mm)
3” GB-3303454 CAST IRON SWIVEL 75 32 100 107 94 X 67 73 X 45
3” GB-3303455 CAST IRON RIGID 75 32 100 107 94 X 67 73 X 45
3” GB-3303469 CAST IRON TOTAL BRAKE 75 32 100 107 94 X 67 73 X 45
3” GB-3303456 CAST IRON WHEEL 75 32 100 41mm 10mm Bushing
4” GB-3303460 CAST IRON SWIVEL 100 32 130 130 94 X 67 73 X 45
4” GB-3303461 CAST IRON RIGID 100 32 130 130 94 X 67 73 X 45
4” GB-3303471 CAST IRON TOTAL BRAKE 100 32 130 130 94 X 67 73 X 45
4” GB-3303462 CAST IRON WHEEL 100 32 130 41mm 10mm Bushing
5” GB-3303463 CAST IRON SWIVEL 125 32 140 154 94 X 67 73 X 45
5” GB-3303464 CAST IRON RIGID 125 32 140 154 94 X 67 73 X 45
5” GB-3303472 CAST IRON TOTAL BRAKE 125 32 140 154 94 X 67 73 X 45
5” GB-3303465 CAST IRON WHEEL 125 32 140 41mm 10mm Bushing
